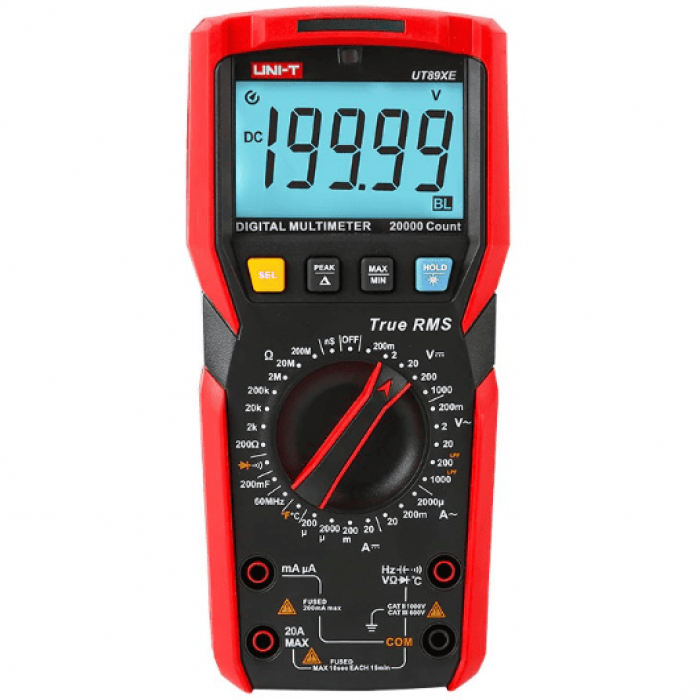

UNI-T UT89XE Digital Multimeter — is a universal measuring device with advanced functionality, which is ideal for electricians, service technicians and radio amateurs. Thanks to the support of True RMS, the multimeter provides high accuracy of measurements of both DC and AC signals, regardless of their shape.
The UT89XE model allows you to perform a wide range of measurements: voltage, current, resistance, frequency, capacitance, temperature, as well as testing diodes and transistors. Additional functions such as HOLD, MAX/MIN and Peak greatly simplify work and increase the accuracy of analysis.
The device is equipped with a large 6000-digit backlit display, a built-in flashlight for working in low light conditions, and a convenient case with a stand and probe holders.
🔧 Main advantages of UNI-T UT89XE
- 📊 True RMS — accurate AC measurements
- 📟 6000-digit display with backlight
- 💡 Built-in flashlight for working in dark conditions
- 🔔 Sound and light indication
- 📌 Data hold function (HOLD)
- 📉 MAX/MIN/Peak modes
- 🔁 Manual and automatic range selection
- 🛠 Stand and probe holders in the case
- 🔋 Auto power off and low battery indicator
📏 Measurement functions
- DC and AC voltage (DC/AC)
- Direct and alternating current (DC/AC)
- Resistance
- Capacitance
- Frequency
- Temperature (°C / °F)
- Electrical conductivity
- Diode test
- Transistor test
- Circuit continuity
📊 Specifications
| Model | UNI-T UT89XE |
| Display | 6000-digit LCD with backlight |
| True RMS | Yes |
| DC voltage | 200 mV – 1000 V |
| AC voltage | 200 mV – 1000 V |
| DC current | 2000 μA – 20 A |
| Alternating current (AC) | 2000 mA – 20 A |
| Resistance | 200 Ohm – 200 MΩ |
| Capacitance | up to 200 mF |
| Frequency | up to 60 MHz |
| Temperature | -40°C – 1000°C |
| Electrical conductivity | up to 200 nS |
| Power supply | 4 × AAA (1.5 V) |
📦 Package contents
- Digital multimeter UNI-T UT89XE
- Measuring probes
- K-type thermocouple
UNI-T UT89XE — This is a reliable, functional and convenient multimeter that will provide accurate measurements and comfortable operation in any conditions.
✅ The ideal choice for electricians, service technicians and home use
| Measurements | |
| Переменное напряжение (AC) | 200 В ~ 250 В ±(1.2%+3) |
| Постоянное напряжение (DC) | 200 мВ~ 250 В ±(0.5%+2) |
| Постоянный ток (DC) | 2000 мкА ~ 10 А ±(1%+2) |
| Сопротивление | 200 Ом ~ 20 МОм ±(0.8%+2) |
| Температура | -40°С ~ 1000°С ±(1%+4); -40°F ~ 1832°F ±(1.5%+5) |
| Special functions | |
| Выбор диапазона | Ручной |
| Подсветка дисплея | + |
| Прозвонка цепи (со звуковым сигналом) | + |
| Тестирование диодов | + |
| General characteristics | |
| Вес | 300 г |
| Назначение | Измерение напряжения |
| Питание | 1.5 В батарея (R03) x 2 |
| Тип | Мультиметр |
