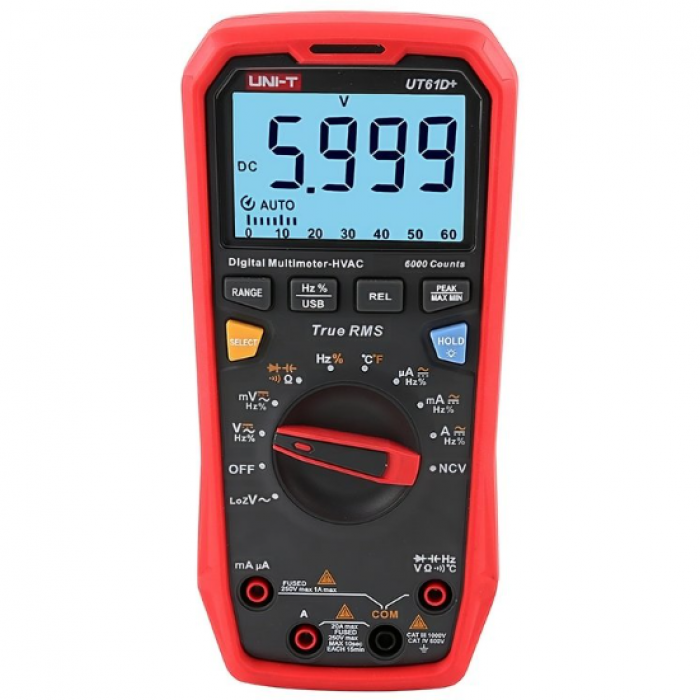

Multifunctional multimeter UT61D+ from UNIT is a tool that will provide you with a wide range of possibilities for measuring electrical parameters. Thanks to the True RMS function, it allows you to accurately measure direct and alternating current and voltage, resistance, capacitance, frequency and relative frequency of pulses.
This multimeter also allows for diode testing and sonic open circuit testing, making it a versatile tool for electrical work and repairs.
The UT61D+ multimeter has useful functions such as relative measurement mode, maximum and minimum value functions, and the ability to switch from manual to automatic ranges.
For the convenience of visualization of the variable signal, an analog graphic scale of 61 segments is used. And the connection with the computer is carried out through a USB port, which allows you to store and analyze the received data using a computer.
The price of the UT61D+ multimeter in the WST store is quite attractive, especially considering its functionality and capabilities. We invite you to buy this multimeter from the WST store for a quality and reliable instrument for your electronics work or hobby.
Functional capabilities of the UT61D+ multimeter:
- Measurement functions:
- direct current
- alternating current
- constant voltage
- alternating voltage
- resistance
- capacity
- frequency
- splitness
- calling the chain
- diode testing
- Automatic and manual border selection
- Data retention function
- Measurement mode of minimum and maximum values
- Display illumination
- Relative measurement mode
- True RMS function (Calculation of true root mean square value)
- Auto shutdown («sleep» mode)
- Analog graphic scale
- RS232C interface for communication with a computer
- Full screen mode
- Low battery indicator
Technical characteristics of the UT61D+ multimeter:
| General characteristics | |
| Screen | 6000-bit LCD, 65 x 43 mm |
| Power | battery 9V (6F22) |
| Dimensions | 180 x 87 x 47mm |
| Weight | 370 g |
| Measurement | |
| Direct voltage (DC) | 60 mV/600 mV/6/60/600/1000 V; ±(0.5%+1) |
| Alternating voltage (AC) | 60 mV/600 mV/6/60/600/750 V; ±(1.0%+3) |
| Direct current (DC) | 600 mA/6000 mA/60 mA/600 mA/6 A/10 A; ±(1.0%+3) |
| Alternating current (AC) | 600 mA/6000 mA/60 mA/600 mA/6 A/10 A; ±(1.2%+5) |
| Resistance | 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ; ±(1.0%+2) |
| Frequency | 10 Hz – 10 MHz; ±(0.1%+4) |
| Capacity | 40 nF/400 nF/4 µF/40 µF/400 µF/4000 µF; ±(3.0%+5) |
| Frequency response | 45 Hz 1 kHz |
| Relative frequency of pulses | 0.1% 99.9% |
| Special Features | |
| Range Selection | Automatic and manual |
| Ringing chains (with sound signal) | + |
| Testing diodes | + |
| Data retention function | + |
| Low battery indication | + |
| Auto shutdown («sleep» mode) | + |
| RS232C interface for communication with a computer | + |
| Display backlight | + |
| Analog graphic scale | 61 divisions |
| Relative measurements function | + |
| Max/Min Mode | + |
| True RMS function | + |
| Full screen mode | + |
Delivery set of multimeter UT61D+:
- Multimeter UT61D+
- Measuring probes – 1 pair
- Battery – 1 pc.
- RS232C-cable - pc.
- Disk with software – 1 pc.
- Universal adapter – 1 pc.
- Operating instructions - 1 pc.
| Measurements | |
| Емкость | 40 нФ/400 нФ/4 мкФ/40 мкФ/400 мкФ/4000 мкФ; ±(3.0%+5) |
| Относительная скважность импульсов | 0.1% ~ 99.9% |
| Переменное напряжение (AC) | 60 мВ/600 мВ/6 В/60 В/600 В/750 В; ±(1.0%+3) |
| Переменный ток (AC) | 600 мА/6000 мА/60 мА/600 мА/6 A/10 A; ±(1.2%+5) |
| Постоянное напряжение (DC) | 60 мВ/600 мВ/6 В/60 В/600 В/1000 В; ±(0.5%+1) |
| Постоянный ток (DC) | 600 мА/6000 мА/60 мА/600 мА/6 A/10 A; ±(1.0%+3) |
| Сопротивление | 600 Ом/6 кОм/60 кОм/600 кОм/6 МОм/60 МОм; ±(1.0%+2) |
| Частота | 10 Гц – 10 МГц; ±(0.1%+4) |
| Частотная характеристика | 45 Гц ~ 1 кГц |
| Special functions | |
| Автоотключение («спящий» режим) | + |
| Аналоговая графическая шкала | 61 деление |
| Выбор диапазона | Автоматический и ручной |
| Габариты | 180 x 87 x 47 мм |
| Гарантия | 12 месяцев |
| Емкость | 40 нФ/400 нФ/4 мкФ/40 мкФ/400 мкФ/4000 мкФ; ±(3.0%+5) |
| Индикация низкого заряда батареи | + |
| Интерфейс RS232 для связи с компьютером | + |
| Интерфейс RS232C для связи с компьютером | + |
| Назначение | Измерение напряжения |
| Относительная скважность импульсов | 0.1% ~ 99.9% |
| Переменное напряжение (AC) | 60 мВ/600 мВ/6 В/60 В/600 В/750 В; ±(1.0%+3) |
| Переменный ток (AC) | 600 мА/6000 мА/60 мА/600 мА/6 A/10 A; ±(1.2%+5) |
| Питание | батарейка 9В (6F22) |
| Подсветка дисплея | + |
| Полноэкранный режим | + |
| Постоянное напряжение (DC) | 60 мВ/600 мВ/6 В/60 В/600 В/1000 В; ±(0.5%+1) |
| Постоянный ток (DC) | 600 мА/6000 мА/60 мА/600 мА/6 A/10 A; ±(1.0%+3) |
| Прозвонка цепи (со звуковым сигналом) | + |
| Режим максимального/минимального значения | + |
| Сопротивление | 600 Ом/6 кОм/60 кОм/600 кОм/6 МОм/60 МОм; ±(1.0%+2) |
| Тестирование диодов | + |
| Тип | Мультиметры |
| Функция True RMS (истинное среднеквадратическое значение) | + |
| Функция относительных измерений | + |
| Функция удержания данных | + |
| Частота | 10 Гц – 10 МГц; ±(0.1%+4) |
| Частотная характеристика | 45 Гц ~ 1 кГц |
| Экран | 6000-разрядный ЖК, 65 x 43 мм |
| General characteristics | |
| Вес | 180 x 87 x 47 мм/370 г/6000-разрядный ЖК, 65 x 43 мм |
| Питание | батарейка 9В (6F22) |
