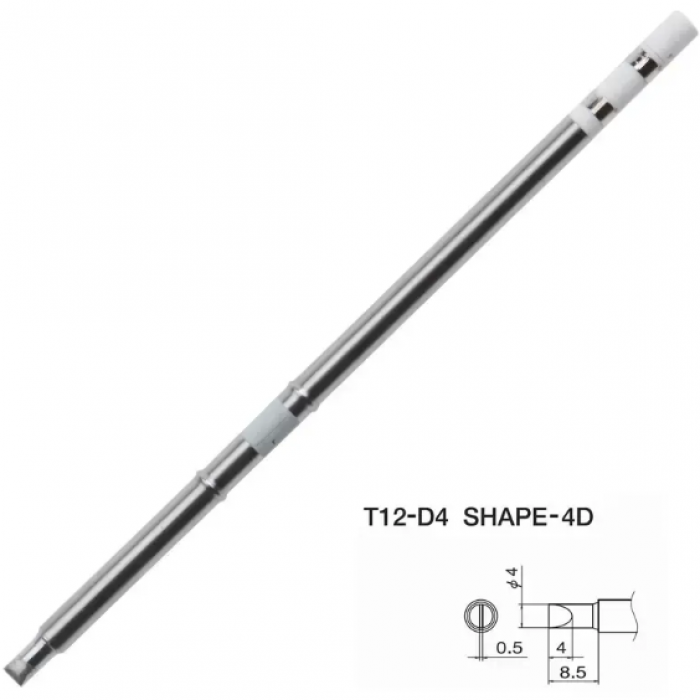

T12-D4 Heater Tip — is a replaceable composite tip of the T12 series that combines a ceramic heater, temperature sensor, and soldering head in one monolithic housing. This design provides the fastest possible heating, precise temperature maintenance and excellent heat transfer without heat sinking during operation.
T12 series tips are used in Hakko FM-2027 and Hakko FM-2028 soldering irons, as well as in all compatible T12 soldering stations presented on the WST website, such as: Lefavor T12 LED, Lefavor T12+ LCD, Quicko T12-951, Quicko T12-952, Quicko T12-959, ZD8962 (Zhongdi). This series has long established itself among electronics repairmen due to its high accuracy, reliability and long service life.
Features and benefits
- Composite monoblock design: the heater and sensor are located as close as possible to the working end of the tip, which significantly increases sensitivity to temperature changes.
- Quick access to operating temperature: the tip is ready to work in seconds thanks to the integrated ceramic heater.
- Temperature stability: eliminates overheating of elements and burnout of tracks on the board.
- High thermal conductivity and anti-corrosion coating: long service life without loss of soldering quality.
- Shape D profile (wedge): a universal tip type that allows you to work as an end surface, and a wide plane.
The D-type profile has the appearance of a flat wedge (like a flat screwdriver). The special feature is that soldering can be performed in two working zones:
- End part (Line): suitable for spot soldering and installation of small SMD elements.
- Flat surface (Face): allows you to quickly heat up the pads or pins of microcircuits.
Scope of application
- Repair and installation of SMD and THT components
- Working with printed circuit boards of different densities
- Microsoldering in portable and complex electronics
- Service of gadgets, laptops, power supplies
Technical specifications
| Series: | T12 |
| Shape Type: | Shape D (wedge) |
| Tip Width: | 4.0 mm |
| Working Length: | 8.5 mm |
| Outer Diameter: | 5.5 mm |
| Heater Material: | Ceramic |
| Coating material: | Nickel |
| Temperature sensor type: | Thermocouple (built-in) |
| Operating temperature: | up to 450 °C |
| Power: | Depends on the soldering station (usually up to ~72–80 W) |
| Design: | Heater + sensor + working part in one housing |
T12-D4 tip — is a reliable, convenient and precise tip that provides comfortable soldering and high quality results. Recommended for both professional craftsmen and home electronics enthusiasts who value the stability and efficiency of the tool.
Order the T12-D4 soldering iron tip in the WST store at an affordable price to ensure yourself a reliable tool for soldering with high quality and efficiency.
Replaceable tip of the T12 standard for the corresponding soldering irons and soldering stations. Easy-to-use tip with good heat capacity and allows you to perform almost any work, whether it is soldering leads, SMD components or tinning boards and cleaning BGA contact pads. A feature of this tip is the built-in heater, which ensures minimal heat loss.
T12 series tips are integrated with a heater and a temperature sensor. The temperature sensor is placed as close as possible to the working end of the tip, which provides very accurate temperature measurement during the soldering process. T12 series tips are characterized by rapid heating and almost instant stabilization of the working temperature. The tip ends with electrical contacts and is fixed in the soldering iron with a latch.
